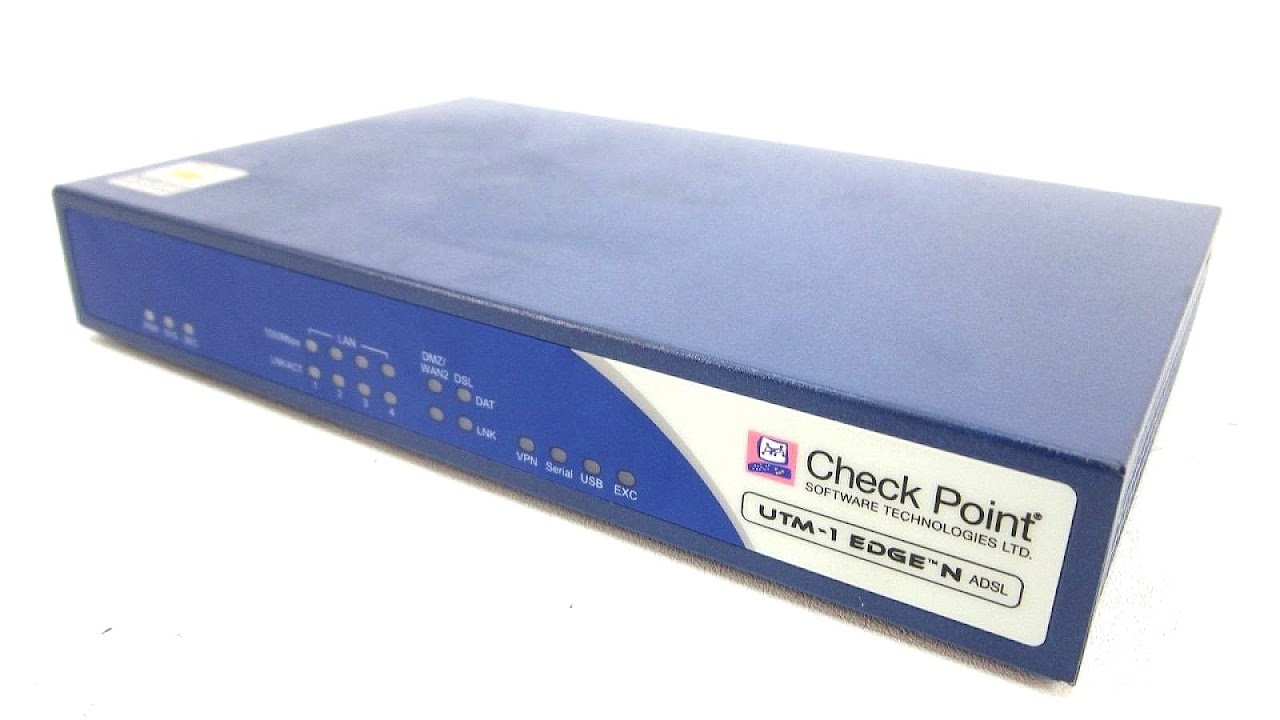

Check Point UTM-1 Edge N Firewall Module SBXNDEF-100-2 (No Power ...
photo src: www.ebay.com

VPN-1 is a firewall and VPN product developed by Check Point Software Technologies Ltd.

VPN-1 is a stateful firewall which also filters traffic by inspecting the application layer. It was the first commercially available software firewall to use stateful inspection. Later (1997), Check Point registered U.S. Patent # 5,606,668 on their security technology that, among other features, included stateful inspection. VPN-1 functionality is currently bundled within all the Check Point's perimeter security products. The product, previously known as FireWall-1, is now sold as an integrated firewall and VPN solution.


3000 Security Appliances | Check Point Software
photo src: www.checkpoint.com


Maps, Directions, and Place Reviews



Platforms

The VPN-1 software is installed on a separate operating system, which provides the protocol stack, file system, process scheduling and other features needed by the product. This is different from most other commercial firewall products like Cisco PIX and Juniper firewalls where the firewall software is part of a proprietary operating system.

Although traditionally sold as software only, VPN-1 is also sold in appliance form as Check Point's UTM-1 (starting 2006) and Power-1 appliances. These appliances run the SecurePlatform operating system.

As of version R70, VPN-1 supports the following operating systems:

  • Windows Server 2003 and 2008;
  • Red Hat Enterprise Linux (RHEL);
  • Check Point SecurePlatform (a Check Point Linux distribution based on Red Hat Enterprise Linux, often called SPLAT);
  • Nokia IPSO;
  • Check Point Gaia (a Check Point Linux distribution, unifying IPSO and SecurePlatform into a single operating system);
  • Crossbeam XOS and COS

Previous versions of Check Point firewall supported other operating systems including Solaris, HP-UX and AIX. See the table in the Version History section below for details.

VPN-1 running on the Nokia platform on IPSO is often called a Nokia Firewall as if it were a different product, but in fact it runs the same VPN-1 software as other platforms.

Upon completing the acquisition of Nokia Security Appliance Business in 2009, Checkpoint started the project named Gaia aimed at merging two different operating systems--SecurePlatform and IPSO--into one. This new OS is positioned to finally replace both existing operating systems at some point in the future. On April 17, 2012 Check Point announced the general availability of the Gaia operating system as part of the R75.40 release.


Learn Checkpoint Firewall Video



Version history

The VPN-1 version naming can be rather confusing because Check Point have changed the version numbering scheme several times through the product's history. Initially, the product used a traditional decimal version number such as 3.0, 4.0 and 4.1 (although 4.1 was also called Check Point 2000 on the packaging). Then the version changed to NG meaning Next Generation and minor revisions became known as Feature Packs. Then the name changed to NG AI which meant NG with Application Intelligence, and the minor revisions became known as Rxx e.g. NG AI R54. Most recently, the version name has changed to NGX.

The product is licensed in several variants. In the decimal releases, the license determined what encryption strength was available for the VPN (DES or "Strong"). Since NG, the license always includes strong cryptographic capabilities and was instead split into VPN-1 Pro or VPN-1 Express. VPN-1 Express was intended for simplified deployment while VPN-1 Pro provided more configurability. In NGX R62, the branding was changed to VPN-1 Power (instead of Pro) and VPN-1 UTM (instead of Express). VPN-1 UTM includes certain content inspection features such as antivirus and more recently, web filtering.

Version 3.0 was also sold by Sun Microsystems as Solstice FireWall-1. This was essentially the same product, but with slightly different packaging and file system layout.

The table below shows the version history. The Platforms column shows the operating systems that are supported by the firewall product:


15000 Security Appliances | Check Point Software
photo src: www.checkpoint.com


Features

While started as pure firewall and vpn only product, later more features were added. And while they are licensed separately, they have since began to be bundled in default installations of the VPN-1 as well.

SmartDefense (IPS) This feature adds to the built-in stateful inspection and inherent TCP/IP protocols checks and normalization inspection of most common application protocols. Starting NGX R70 this feature has been rebranded as IPS.
Quality of service (Floodgate-1) Checkpoint implementation of the Quality of service (QOS). It supports bandwidth guaranteeing or limiting per QOS rule or per connection. Also the priority queuing can be done (LLQ). Nevertheless, RFC based QOS implementation, be it Differentiated services or Ip precedence, are not supported
Content Inspection Starting with NGX R65 this new feature has been introduced providing 2 services:

  • Antivirus scanning - scanning of the passing traffic for viruses
  • Web filtering - limiting access of internal to the firewall hosts to the Web resources using explicit URL specification or category rating.

Source of the article : Wikipedia
